Today we got an order from Germany which we cooperated since year 2016. It has four items within two metal injection moulding. Welcome to visit our website www.no2machinary.com.

Iraqi customers place a batch of armrest box pinions, MIM motorcycle connecting rod tube, intelligent dead bolt products, are preparing to pack and ship, thank you for your order, thank you for your trust and cooperation!

Fiber optic communication connector, mobile phone SIM card slot MIM accessories, smart lock core products, Malaysia customers order, the product is preparing for packaging and delivery, thank you for your order!

Korean customers order a batch of electric lock complex components, controller spare parts, surgical operation scissors products, are preparing to pack and ship, thank you for your order, thank you for your trust and cooperation!

Size precision control and reducing production costs are the two difficult facts in MIM produce.

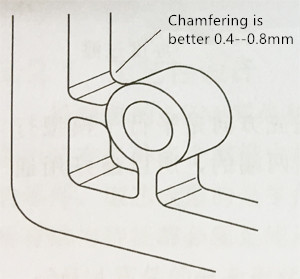

Please design the chamfering 0.4-08mm if no any special mechanical properties. Then the part would be smoother and have better cracking resistance.

chamfering can reduce the stress at the structural intersections, remove the sharp angle which may lead to cracking and corrosion of structural features, facilitate the injection material flowing into the mold and help the parts get out of the cavity, so as to improve the process of forming.

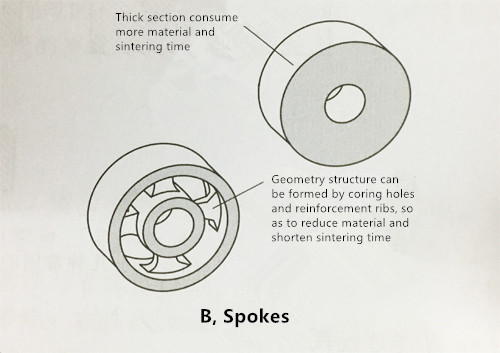

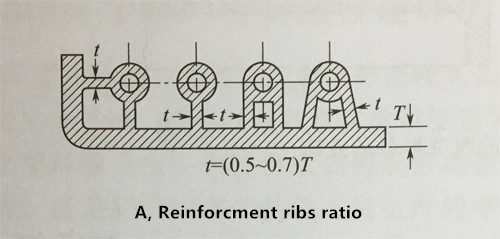

Reinforcement ribs and spokes are used to reinforce thin walls and avoid thick sections. In addition to increasing the strength of wall thickness, it can also improve material flow and limit distortion.

It is usually 0.5 to 2 degrees. The actual demoulding slope increases along with the depth of forming hole or recess and the complexity of parts.

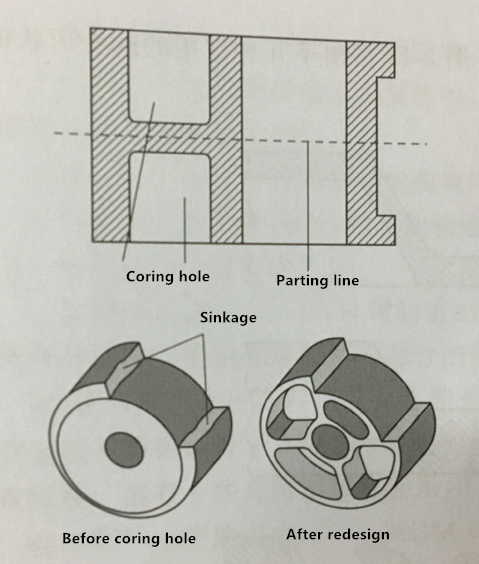

Coring hole can reduce the cross section to the criterion limit, in order to achieve uniform wall thickness, reduce material consumption and cutting operations.

Today, we held the 2018 annual general review and recognition conference. In this review, our leader Shujun Liu shows we got quality advanced unit certificate, safety advanced unit certificate and we signed contract agreement.

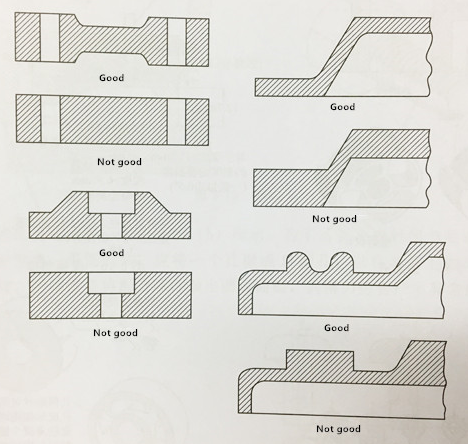

The thickness of parts should be in the range of 1.3-6.3 mm. In order to make it uniform, Figure 1 shows several commonly used methods for changing shape.

US customers place a batch of smart lock adjustment board, MIM mobile phone bracket, computer hinge products, are preparing to pack and ship, thank you for your order, thank you for your trust and cooperation!

The Irish customer orders a batch of electrical communication components, is preparing to pack and ship, thank you for your order, thank you for your trust and cooperation!

Moulding is the most important process in MIM parts production. It decide all the quality. So our No2 Machinry Company are very focus on this.

Powder injection moulding technology provides a new idea for the design and development of functional parts, opens up a new product type and market for the powder injection moulding industry, and is the inevitable trend of the future development of this industry.

MIM technology can also be used to produce many medical products, including interventional stents, radiation shielding of tungsten high density alloy syringes, microsurgical manipulators, micro-pump endoscope parts and drug inhalers.

The slow progress of MIM technology in the field of human body implantation is mainly due to the long cycle of product certification and acceptance.

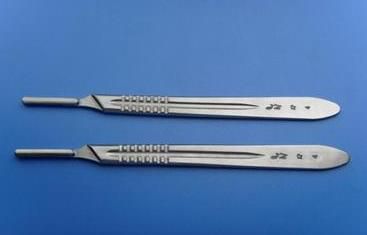

One-off surgical tools need to develop a low-cost batch production process. No2 Machinery Company uses MIM technology to produce a shaft , which can be used in a new type of disposable surgical instruments. The cost is only 1/4-1/5 of that processed by Swiss CNC machine tools, the density is 7.5 g/cm3, the ultimate tensile strength is 1190 MPa, and the yield strength is 1090 MPa. The elongation is 6.0% and the maximum hardness is 33 HRC.

MIM technology was first used to make some dental orthodontics in medical field. These precision products are very small in size, biocompatibility and corrosion resistance. The main material used is 316L stainless steel. At present, orthodontic brackets are still the main products of MIM industry.
